Silicone sealants are ubiquitous, found in applications ranging from household window sealing and automotive assembly to protecting delicate electronic components. But behind every simple cartridge lies a sophisticated, automated modern industrial process. Let's dive into the details.

Part 1: Core Components of a Silicone Sealant

Before understanding the production line, we must know what we are producing. A typical silicone sealant consists of:

1. Base Polymer: Hydroxyl-terminated polydimethylsiloxane (often called 107 Silicone Rubber). This is the backbone, providing elasticity and adhesion.

2. Reinforcing Filler: Fumed silica (e.g., Aerosil) to enhance strength and hardness.

3. Plasticizer: Used to adjust the viscosity and application properties.

4. Crosslinker: Reacts with the base polymer, causing the material to cure from a liquid into an elastomer.

5. Catalyst: Accelerates the cross-linking reaction.

6. Adhesion Promoter (Coupling Agent): Improves bond strength to various substrates.

7. Pigment: Provides color (e.g., white, black, transparent).

The key technological challenge lies in how to mix these components—especially the moisture-sensitive ones—uniformly, efficiently, and without initiating premature curing.

Part 2: The Anatomy of a Modern Silicone Sealant Production Line

A fully automated production line is a marvel of chemical engineering. It can be broken down into several key sections:

1. Raw Material Handling & Feeding System

• Storage Silos/Tanks: For bulk liquids like 107 rubber and plasticizers.

• Big Bag Unloaders / Bag Dump Stations: For handling powdered materials like fumed silica and pigments. These are often connected to dust collection systems.

• Precision Weighing Systems: Load cells under mixing vessels ensure each component is added with high accuracy according to the formula.

2. Mixing & Dispersion Section (The Heart of the Line)

• Planetary Mixer / Dual-Shaft Mixer: This is the core mixing vessel.

  • It features a low-speed anchor stirrer for bulk mixing and a high-speed disperser blade. The disperser is crucial for breaking down fumed silica agglomerates and achieving a perfectly homogeneous, lump-free paste.

  • The entire system is under a vacuum. This is critical for de-aeration, removing entrapped air bubbles that would otherwise cause defects in the final product.

  • The mixer is jacketed for temperature control (heating/cooling) to manage the exothermic reaction during mixing.

3. Filling and Packaging Line

• Filling Machine: Automatically fills the finished sealant paste into:

  • Cartridges: Standard 300ml sausages.

  • Buckets: For larger volume containers (e.g., 20L).

• Capping Machine: Applies and tightens the cap onto the cartridge or bucket.

• Labeling Machine: Applies product labels with batch numbers, expiry dates, etc.

4. Process Control & Automation

• A central PLC (Programmable Logic Controller) or DCS (Distributed Control System) oversees the entire process.

• Operators input recipes, and the system automatically controls weighing, mixing times, vacuum levels, temperature, and the sequence of operations. This ensures batch-to-batch consistency and product quality.

Part 3: The Production Process Flow

The journey from raw material to boxed product is a seamless flow:

1. Formula Weighing: Ingredients are automatically or manually weighed based on the production recipe.

2. Loading & Mixing (Part A): The base polymer, plasticizer, and filler are loaded into the planetary mixer. The mixer starts under vacuum, and the high-speed disperser runs to fully incorporate the filler.

3. Sensitive Component Addition (Part B): After the base paste is homogeneous and cooled down, the crosslinker, catalyst, and adhesion promoter are added under vacuum. This two-step process prevents premature curing.

4. Final Mixing & De-aeration: A final mixing cycle ensures perfect homogeneity. The vacuum powerfully removes all air bubbles.

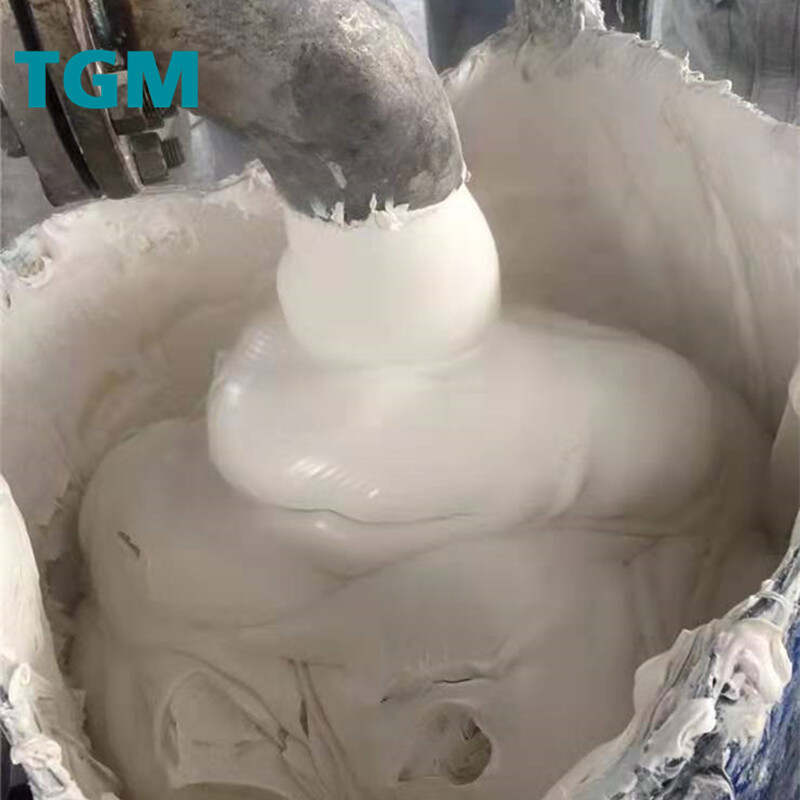

5. Discharge: The finished, de-aerated sealant is discharged into a sealed holding tank, often connected directly to the filler.

6. Filling & Packaging: The filler dispenses the precise volume into cartridges or buckets, which are then capped and labeled automatically.

7. Carton Packing & Palletizing: The finished packages are automatically or manually packed into cartons and placed on pallets for storage and shipment.

Part 4: Key Technological Highlights & Trends

• Vacuum Planetary Mixing: Non-negotiable for high-quality, bubble-free products.

• "Two-Step" Mixing Process: Industry standard for ensuring long shelf life and preventing "cottoning" (pre-cure in the drum).

• Cleaning-in-Place (CIP) Systems: For lines that produce multiple colors or grades, CIP systems allow for quick product changeover without extensive manual cleaning.

• Industry 4.0 Integration: Modern lines feature data acquisition (SCADA) for traceability, predictive maintenance, and real-time quality monitoring.

Conclusion

A silicone sealant production line is far more than just a "mixer." It is a finely tuned symphony of chemical engineering, mechanical design, and automation control. Investing in a robust and automated line is not just about output; it's about guaranteeing the consistency, performance, and reliability of every single cartridge of sealant that reaches the end user.
