When you apply CPVC cement to join pipes, you're using a product engineered for strength, safety, and reliability. But have you ever wondered how this crucial adhesive is made? The process is a fascinating blend of chemistry and precision engineering, all orchestrated within a modern CPVC adhesive production line.

In this blog post, we'll walk you through the key stages of a fully automated production line, revealing the technology that ensures every batch meets the highest standards.

What is CPVC Adhesive?

First, a quick refresher. CPVC (Chlorinated Polyvinyl Chloride) adhesive is a solvent-based cement designed to chemically weld CPVC pipes and fittings together. It works by temporarily dissolving the surfaces of the CPVC, allowing the polymer chains to intertwine and fuse as the solvents evaporate. The final result is a permanent, monolithic joint that is often stronger than the pipe itself.

The Heart of the Operation: The CPVC Production Line

A modern production line is a closed, automated system designed for efficiency, safety, and consistent quality. Here’s a step-by-step breakdown:

Stage 1: Raw Material Handling & Pre-Mixing

The journey begins with raw materials. The primary components are:

• Solvents: Tetrahydrofuran (THF), Cyclohexanone, or Methyl Ethyl Ketone (MEK).

• CPVC Resin: The key bonding agent.

• Additives: Stabilizers, colorants, and fillers.

High-precision load cells and automated dosing systems ensure the exact quantities of each solvent are transferred into a sealed, high-shear mixer. This eliminates human error and minimizes solvent exposure.

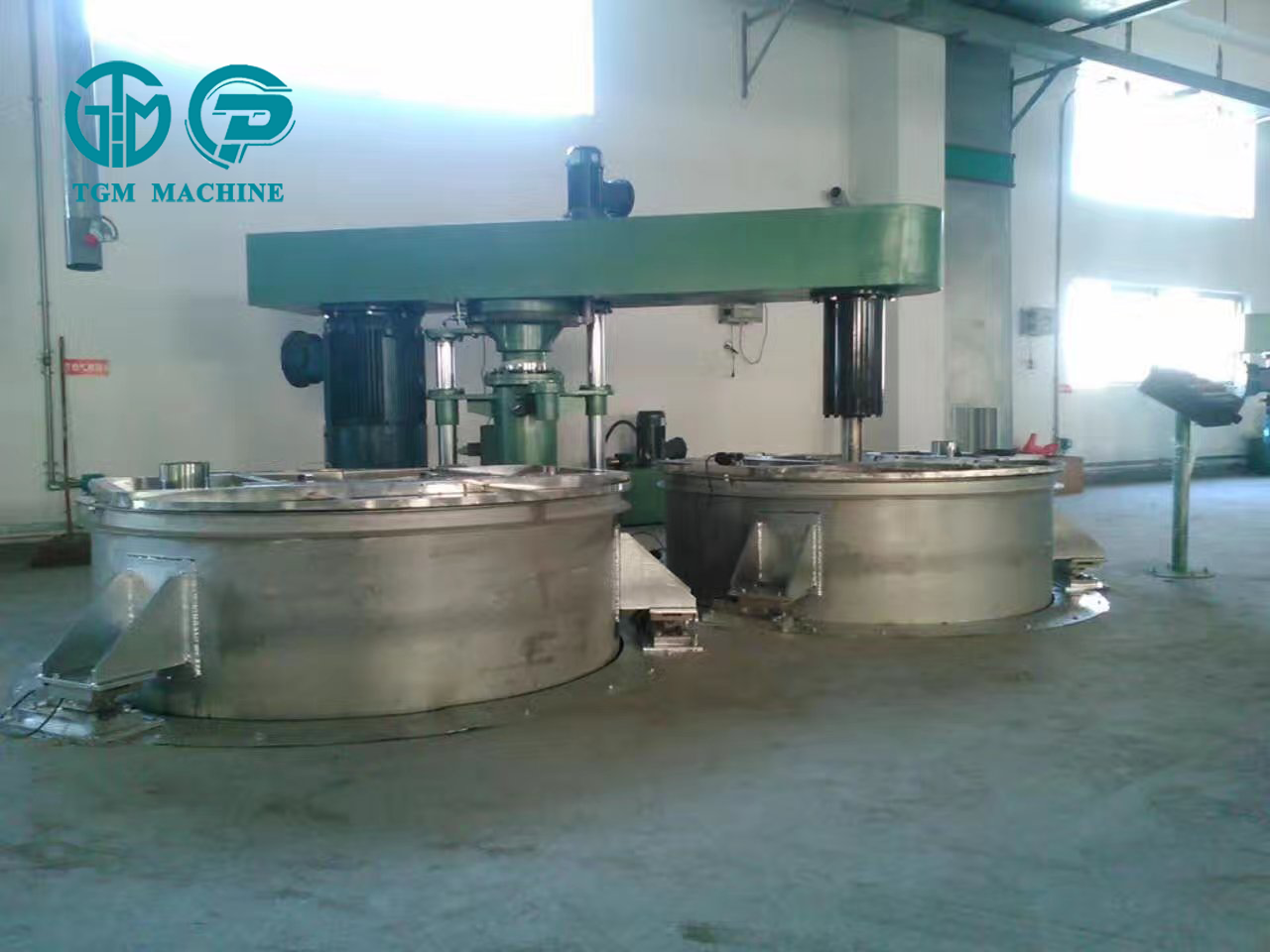

Stage 2: High-Shear Mixing & Dissolution

This is the most critical phase. The pre-mixed solvents are pumped into the main reaction vessel. The CPVC resin is then gradually added under powerful agitation. The mixer creates a high-shear environment that thoroughly wets the resin particles and promotes complete dissolution into the solvent blend. The temperature is carefully controlled to ensure a smooth, lump-free solution.

Stage 3: Incorporation of Additives

Once a homogeneous solution is achieved, other additives are introduced. Stabilizers prevent degradation, and colorants (typically a distinctive orange or yellow) provide visual confirmation of application. This stage uses slower mixing to incorporate these components without introducing air bubbles.

Stage 4: Filtration and Deaeration

The mixed adhesive is then pumped through a fine filtration system to remove any potential impurities or undissolved particles, guaranteeing a perfectly smooth product. It may then pass through a deaeration chamber to remove trapped air bubbles, which could otherwise create weak spots in a pipe joint.

Stage 5: Automated Filling & Capping

The finished adhesive is conveyed to the filling station. Automated filling machines accurately dispense the precise volume into cans or jars. The line then applies caps and seals them tightly to prevent solvent evaporation and contamination. This entire process is often done within a ventilated enclosure to capture any solvent vapors.

Stage 6: Labeling and Packaging

Finally, the containers are labeled with batch numbers, manufacturing dates, and safety information. They are then automatically packed into cartons, palletized, and prepared for shipment.

Why a Modern Production Line Matters

• Consistent Quality: Automation ensures every batch has the exact same formulation, viscosity, and bonding strength.

• Safety: Closed systems and vapor recovery units drastically reduce worker exposure to volatile solvents and fire hazards.

• Efficiency: High-speed, continuous operations maximize output and reduce production costs.

• Traceability: Batch tracking from raw materials to finished goods allows for complete quality control.

Conclusion

The next time you use CPVC cement, you'll appreciate that it's more than just a simple glue. It's the product of a sophisticated, carefully controlled manufacturing process. Investing in a state-of-the-art CPVC adhesive production line is not just about making adhesive—it's about ensuring the long-term integrity and safety of plumbing systems around the world.
