Introduction

Thermosetting powder coatings have become a popular choice for industrial and consumer applications due to their durability, environmental benefits, and cost-effectiveness. Unlike liquid paints, powder coatings are solvent-free and provide excellent resistance to corrosion, chemicals, and UV rays.

In this blog, we will explore the thermosetting powder coating production line, including its key components, manufacturing process, and advantages.

What is Thermosetting Powder Coating?

Thermosetting powder coatings are made from resins that chemically cross-link when heated, forming a hard, durable finish. Common resins used include:

• Epoxy – Excellent adhesion and chemical resistance.

• Polyester – Good weather resistance, often used outdoors.

• Epoxy-Polyester Hybrid – Balances properties of both resins.

• Polyurethane – High mechanical and abrasion resistance.

These coatings are applied electrostatically and then cured under heat, creating a smooth, uniform layer.

Key Components of a Powder Coating Production Line

A complete thermosetting powder coating production line consists of several stages:

1. Pre-Mixing

• Raw materials (resins, pigments, fillers, additives) are weighed and pre-mixed to ensure homogeneity.

• High-speed mixers or tumble blenders are commonly used.

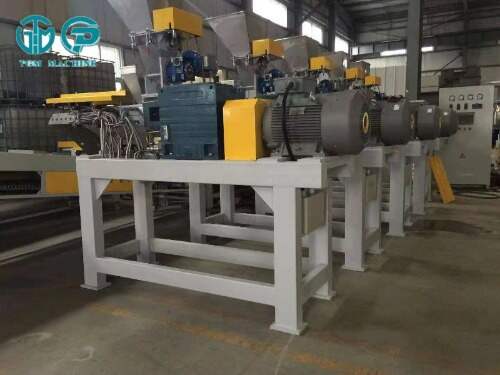

2. Extrusion

• The pre-mixed ingredients are fed into an extruder, where they are melted, mixed, and homogenized at controlled temperatures (typically 80–120°C).

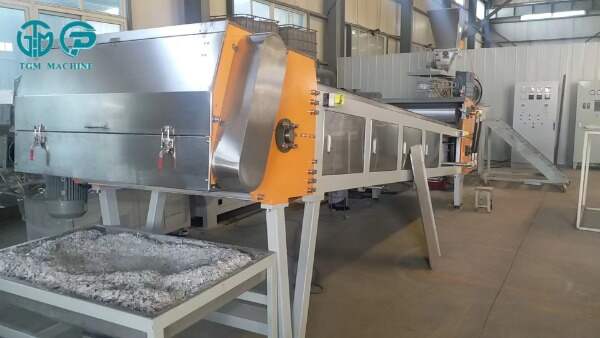

• The extruded material is then cooled and broken into chips.

3. Grinding & Classification

• The chips are ground into fine powder using an air classifier mill or pin disc mill.

• The powder is sieved to achieve the desired particle size (usually 30–50 microns).

• Oversized particles are recycled back into the grinding process.

4. Sieving & Packaging

• The final powder is sieved again to remove any agglomerates.

• It is then packed into bags or containers for storage and shipment.

5. Quality Control

• Various tests are conducted, including:

  • Particle size distribution (laser diffraction analysis)

  • Gel time test (to check curing behavior)

  • Color matching & gloss measurement

  • Adhesion & impact resistance tests

Advantages of Thermosetting Powder Coatings

✅ Eco-Friendly – No VOCs (volatile organic compounds), reducing environmental impact.
✅ Durable – Resistant to chipping, scratching, and corrosion.
✅ Cost-Effective – High transfer efficiency (nearly 100% overspray can be reused).
✅ Wide Range of Finishes – Available in matte, glossy, textured, and metallic effects.
✅ Fast Curing – Typically cures in 10–20 minutes at 150–200°C.

Applications of Thermosetting Powder Coatings

• Automotive – Wheels, engine parts, and accessories.

• Appliances – Refrigerators, washing machines, and ovens.

• Architectural – Window frames, fencing, and aluminum extrusions.

• Furniture – Office furniture, shelving, and lighting fixtures.

• Industrial Equipment – Agricultural machinery, electrical enclosures, and pipelines.

Conclusion

The thermosetting powder coating production line is a sophisticated yet efficient process that delivers high-quality, durable finishes for various industries. With growing environmental regulations and demand for sustainable coatings, powder coating technology continues to evolve, offering better performance and innovative solutions.

If you’re considering investing in a powder coating production line, ensure you choose the right equipment and raw materials to meet your specific requirements.
