Introduction

Thermoplastic powder coatings are widely used in various industries due to their durability, chemical resistance, and ease of application. Unlike thermosetting powders, thermoplastic coatings can be remelted and reshaped, making them ideal for applications requiring flexibility and repairability.

A thermoplastic powder coating production line involves several key processes, including material preparation, extrusion, cooling, grinding, and packaging. This blog provides a detailed breakdown of each stage in the production process.

1. Raw Material Preparation

The first step in producing thermoplastic powder coatings is selecting and preparing raw materials. Common thermoplastic resins used include:

• Polyvinyl Chloride (PVC) – Used for corrosion resistance.

• Polyethylene (PE) & Polypropylene (PP) – Common in fluidized bed coatings.

• Nylon (Polyamide) – Offers excellent wear resistance.

• Polyester (PES) & Ethylene-Vinyl Acetate (EVA) – Used for adhesion and flexibility.

Process Steps:

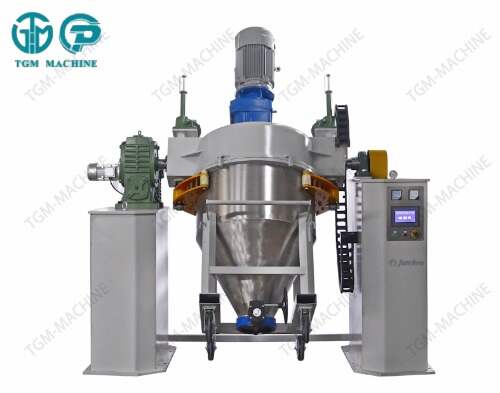

• Weighing & Mixing: Raw materials (resin, plasticizers, pigments, stabilizers, and additives) are precisely weighed and mixed in a high-speed mixer.

• Pre-blending: Ensures uniform distribution of additives before extrusion.

2. Extrusion Process

The mixed materials are fed into an extruder, where they are melted, homogenized, and formed into a uniform compound.

Key Components of the Extrusion Line:

• Feeder System: Delivers raw materials into the extruder.

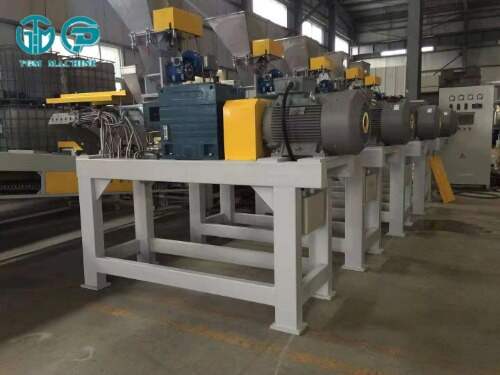

• Twin-Screw Extruder: Heats and mixes the material at controlled temperatures (typically 100–200°C, depending on the polymer).

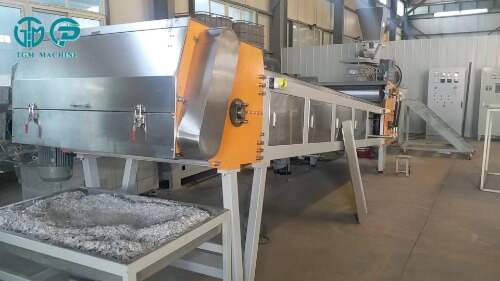

• Cooling Belt: The molten material exits the extruder as a thin film and is cooled on a conveyor belt.

Critical Parameters:

• Temperature Control: Must be precise to avoid degradation.

• Screw Speed & Torque: Affects mixing efficiency.

3. Cooling & Crushing

After extrusion, the material must be cooled and prepared for grinding.

Steps Involved:

• Cooling: The extruded film passes through a water-cooled or air-cooled conveyor to solidify.

• Breaking: The cooled sheet is crushed into smaller chips using a crusher or granulator.

4. Grinding & Classification

The chips are ground into fine powder using specialized mills.

Grinding Methods:

• Impact Mill (Hammer Mill): Uses high-speed rotating hammers to pulverize the material.

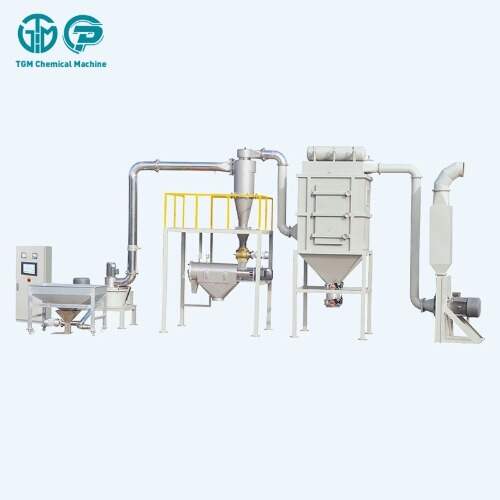

• Air Classifying Mill (ACM): Provides finer particle size control by separating particles based on size.

Particle Size Control:

• Sieving or air classification ensures the powder meets specifications (typically 20–100 microns).

• Oversized particles are recycled back into the grinding process.

5. Sieving & Quality Control

The powder is sieved to remove agglomerates and ensure consistency.

Quality Checks:

• Particle Size Distribution (Laser diffraction analysis).

• Flowability & Density (Hall flow meter, bulk density test).

• Color & Gloss (Spectrophotometer).

• Chemical Resistance & Mechanical Properties (Adhesion, impact, and bend tests).

6. Packaging & Storage

The final powder is packed in moisture-resistant containers:

• Paper Bags with LDPE Liners (25 kg standard).

• Big Bags (FIBCs) for bulk shipments.

• Storage Conditions: Kept in a dry, cool environment to prevent moisture absorption.

7. Application Methods

Thermoplastic powder coatings can be applied using:

• Fluidized Bed Coating: Heated parts are dipped into a fluidized powder bed.

• Electrostatic Spray (for some thermoplastics): Charged powder adheres to grounded parts.

• Flame Spraying: Powder is melted and sprayed onto the substrate.

Conclusion

A thermoplastic powder coating production line requires precise control at every stage—from raw material selection to extrusion, grinding, and quality assurance. The process ensures high-performance coatings for automotive, industrial, and consumer applications.

By optimizing each step, manufacturers can produce durable, high-quality thermoplastic powder coatings that meet industry demands.
