In the vast world of manufacturing, countless products rely on a hidden champion to hold them together—literally. This champion is binder resin. From the brakes in your car and the sandpaper in your workshop to the roof insulation overhead and the particleboard in your furniture, none would exist in their durable form without these specialized synthetic polymers.

But how are these crucial industrial "glues" created? The answer lies within a complex, precisely engineered, and highly automated process: the Binder Resin Production Line. Let's pull back the curtain and explore this fascinating piece of industrial infrastructure.

What is Binder Resin?

Binder resins are polymeric materials designed to coat, bind, and consolidate particulate or fibrous materials. They are typically supplied as liquid solutions or emulsions and undergo a curing process (using heat, catalysts, or time) to form a solid, cross-linked network that provides structural integrity to the final product.

Common types include:

• Phenolic Resins: Known for excellent heat resistance (e.g., brake pads, refractory bricks).

• Amino Resins (Urea-Formaldehyde, Melamine-Formaldehyde): Widely used in wood products like particleboard and MDF.

• Epoxy Resins: prized for superior strength and chemical resistance (e.g., abrasives, composites).

• Polyurethane Resins: Flexible and durable, used in foundry cores and coatings.

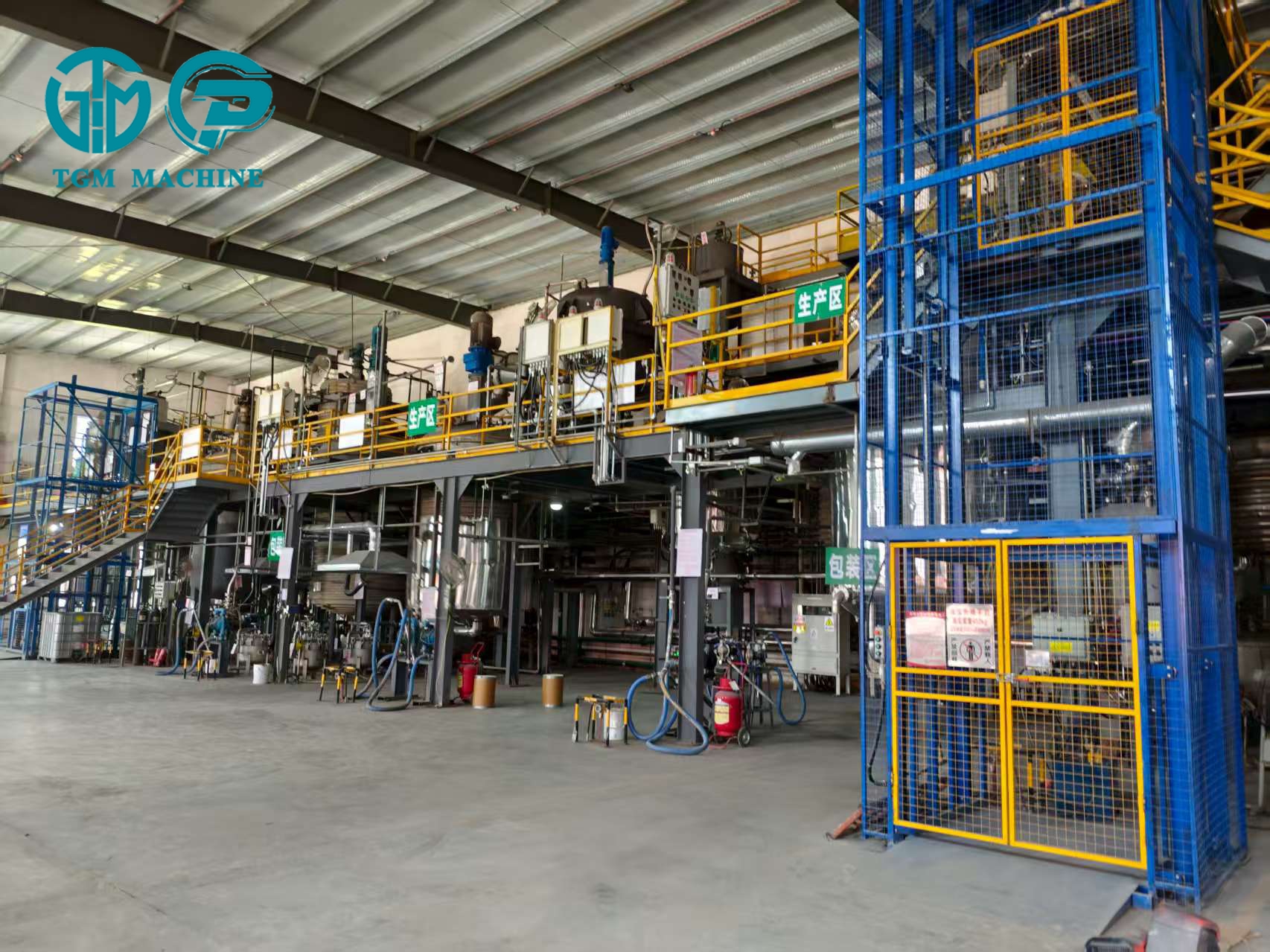

The Heart of the Operation: The Production Line

A modern resin plant is a symphony of chemical engineering, where raw materials are transformed into a consistent, high-quality product. The production line can be broken down into several key stages:

1. Raw Material Storage and Handling
The process begins with the storage of raw materials—typically formaldehyde, phenol, urea, methanol, and various catalysts and modifiers. These are stored in large atmospheric or pressurized tanks. A sophisticated network of pumps and pipes precisely meters and transfers these components to the next stage. Safety and precision are paramount here.

2. The Reactor: Where Chemistry Happens
This is the core of the entire line: the reactor vessel. It's a large, computer-controlled, jacketed kettle, often made from stainless steel to resist corrosion.

• Charging: Precisely measured quantities of raw materials are fed into the reactor in a specific sequence.

• Reaction: The mixture is heated or cooled by a thermal fluid (e.g., steam, hot oil) circulating in the reactor's jacket. The reaction to create the resin (e.g., polymerization, condensation) takes place under tightly controlled conditions of temperature, pressure, and pH.

• Condensation & Dehydration: Many reactions, especially for phenolic and amino resins, produce water as a byproduct. This water is removed via distillation under vacuum, which also helps advance the reaction to the desired molecular weight and viscosity.

3. Cooling and Dilution
Once the reaction reaches its predetermined endpoint (determined by viscosity, density, or reaction time), the product is a hot, highly viscous resin. It must be cooled quickly to stop the reaction. Water or solvent is often added at this stage to dilute the resin to its exact commercial specification.

4. Quality Control (QC) Laboratory
This is the brain center. Samples are taken throughout the batch process, especially at the end, for rigorous QC testing. Technicians analyze key parameters like:

• Viscosity: Critical for application.

• Solid Content: The percentage of active resin.

• pH: Affects stability and curing behavior.

• Gel Time: Measures how quickly the resin will cure.

Only after passing all QC checks is the batch approved for storage.

5. Product Storage and Loading
The finished resin is pumped to large storage tanks, where it is kept agitated and at a stable temperature until it is ready to be shipped. From here, it can be loaded into tanker trucks for bulk delivery, or into smaller drums and totes for smaller customers.

Key Features of a Modern Production Line

• Automation & Process Control: A Distributed Control System (DCS) or PLC oversees the entire operation. Operators monitor and control every parameter from a central control room, ensuring unmatched batch-to-batch consistency and safety.

• Safety Systems: Resin production involves flammable materials and exothermic reactions. Lines are equipped with emergency shutdown systems, pressure relief valves, advanced ventilation, and containment measures.

• Environmental Controls: Modern plants are designed with sustainability in mind. This includes:

  • Scrubbers: to neutralize and treat gaseous emissions (like formaldehyde).

  • Wastewater Treatment: to clean process water before disposal or reuse.

  • Energy Efficiency: Heat recovery systems are often integrated to capture and reuse thermal energy.

The Future of Binder Resin Production

The industry is continuously evolving, driven by demands for sustainability and performance:

• Bio-based Feedstocks: Research into replacing phenol and other petroleum-derived materials with renewable alternatives like lignin or cashew nut shell liquid is accelerating.

• Formaldehyde-Free Resins: Developing new chemistries (e.g., based on soy, polyvinyl acetate, or isocyanates) to meet stricter emissions regulations for wood products.

• Industry 4.0: Enhanced data analytics, AI, and IoT sensors are being used for predictive maintenance, optimizing recipes in real-time, and further improving efficiency and quality.

Conclusion

The binder resin production line is far more than just a series of tanks and pipes. It is a marvel of chemical engineering where raw, often volatile, materials are meticulously transformed into the products that literally hold our industrial world together. This continuous pursuit of precision, safety, and innovation ensures that this "unsung hero" will continue to enable stronger, safer, and more advanced materials for years to come.
