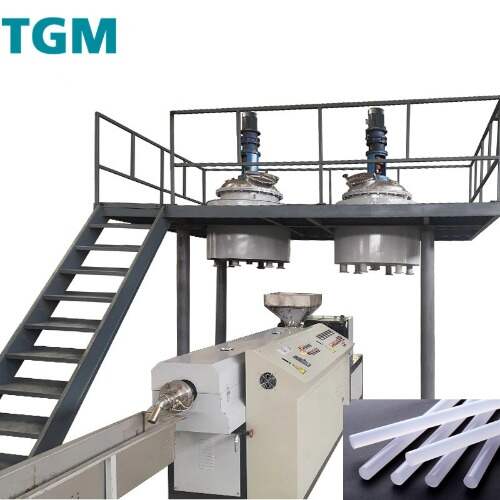

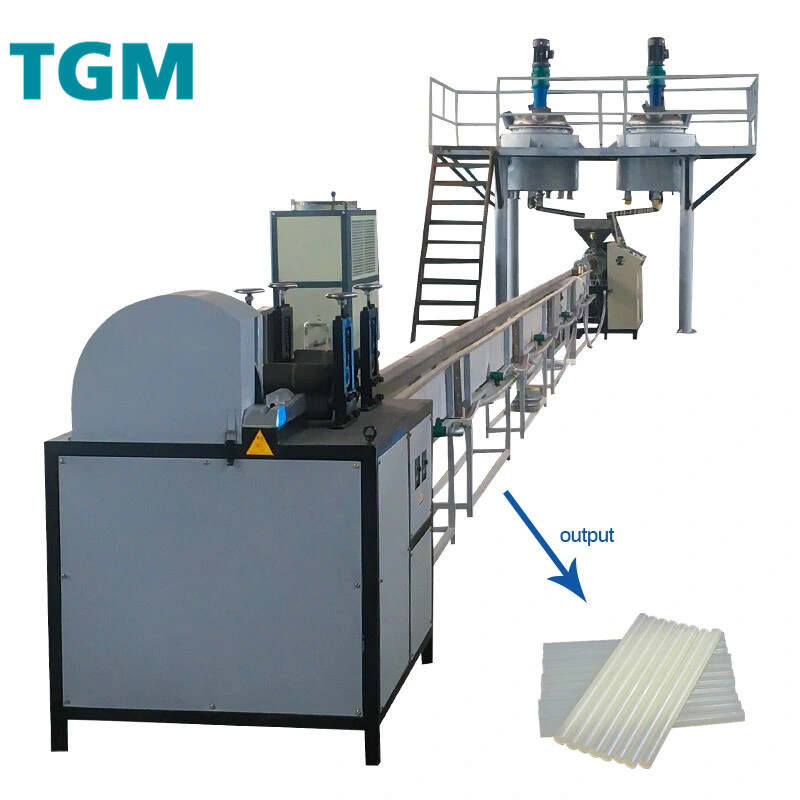

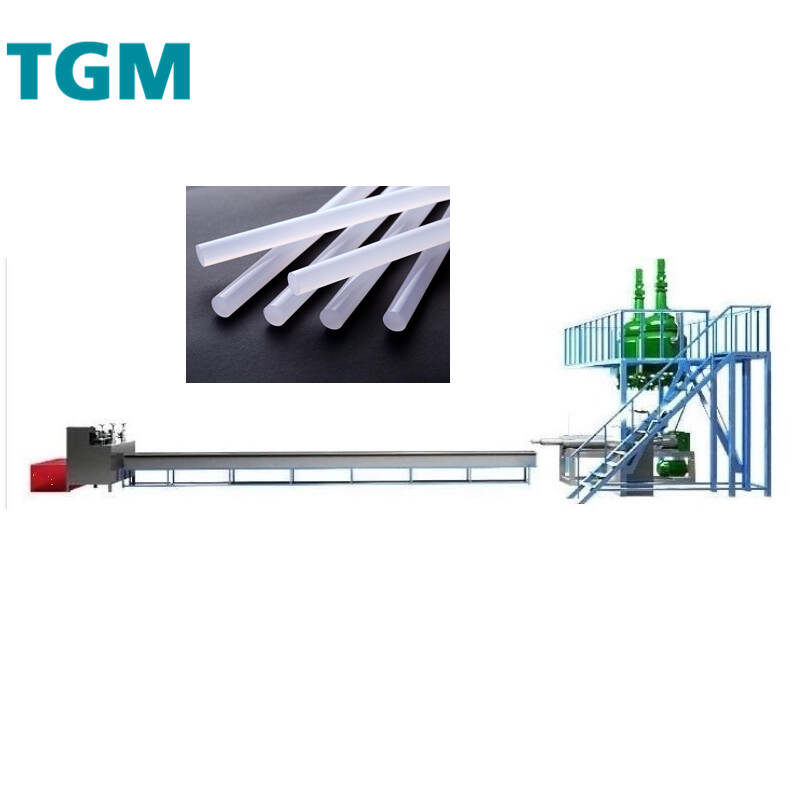

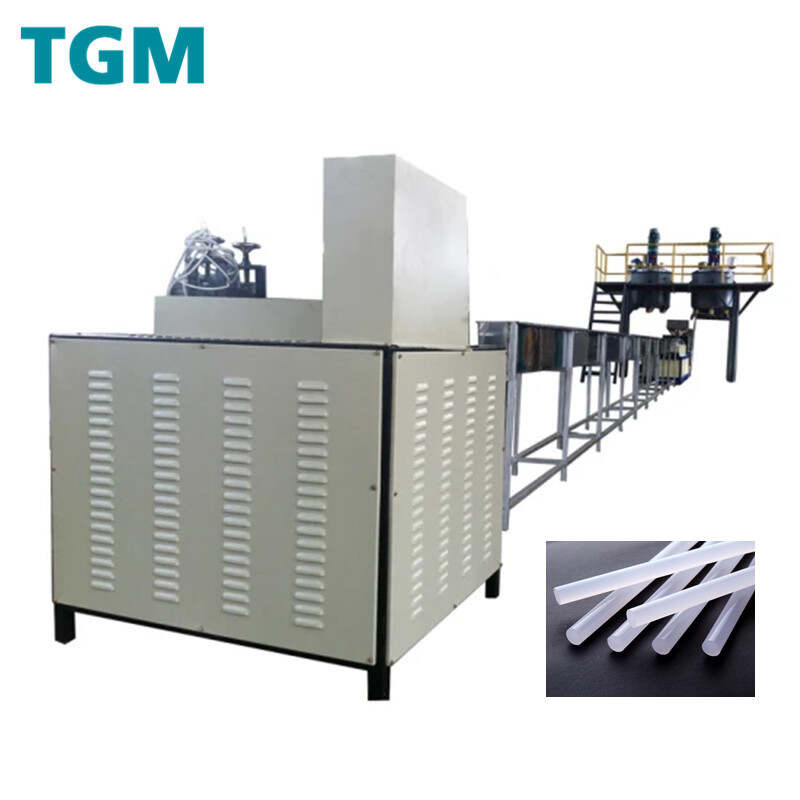

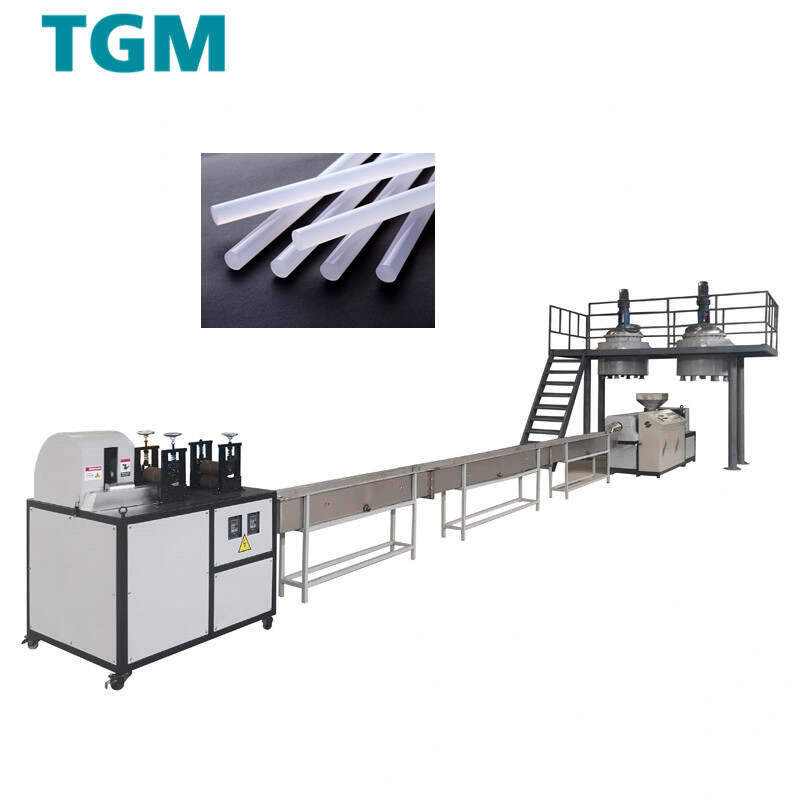

PSA Hot Melt Adhesive Production Line
-
≥1/set
USD 150,000.00
1.Introduction
Pressure-Sensitive Adhesives (PSA) hot melt formulations are versatile bonding solutions that provide instant tack and permanent adhesion upon light pressure application. Unlike traditional adhesives, PSAs don't require curing or activation - they adhere immediately while remaining removable/repositionable in some applications. These adhesives are widely used in labeling, tapes, medical patches, and automotive trim applications.
This guide covers:
✅ Key components of PSA hot melt formulations
✅ Manufacturing process step-by-step
✅ Special properties & applications
2.Production Process of PSA Hot Melt Adhesives
Step 1: Raw Material Preparation
-
Pre-drying of hygroscopic components (resins, fillers)
-
Accurate weighing of all formulation ingredients
Step 2: Melt Compounding
-
Primary Melting:
-
Base polymers melted first in heated sigma blade mixer (120-180°C)
-
Maintained under nitrogen blanket to prevent oxidation
-
-
Resin Incorporation:
-
Tackifiers gradually added under high shear mixing
-
Temperature controlled to avoid thermal degradation
-
-
Additive Blending:
-
Plasticizers, stabilizers, and other additives incorporated
-
Homogenized for 1-3 hours until uniform viscosity achieved
-
Step 3: Filtration & Degassing
-
Molten adhesive passed through mesh filters (50-200µm)
-
Vacuum degassing to remove entrapped air bubbles
Step 4: Forming & Packaging
-
Die-cutting into blocks, pellets, or slugs
-
Coating directly onto release liners for tape applications
-
Special packaging in moisture-barrier materials
Step 5: Quality Control Testing
-
Tack: Rolling ball/loop tack tests
-
Peel Adhesion: 180°/90° peel tests
-
Shear Resistance: Holding power measurements
-
Rheology: Melt viscosity & softening point
3.Raw Materials for PSA Hot Melt Adhesives
1. Base Polymers (30-60%)
-
Styrenic Block Copolymers (SBCs):
-
SIS (Styrene-Isoprene-Styrene) - excellent tack & flexibility
-
SBS (Styrene-Butadiene-Styrene) - better strength & heat resistance
-
-
Amorphous Polyalphaolefins (APAO): Good UV/aging resistance
2. Tackifying Resins (30-50%)
-
Hydrocarbon resins (C5 aliphatic, C9 aromatic, or mixed)
-
Rosin esters (gum, tall oil, or wood rosin derivatives)
-
Terpene resins (natural or synthetic)
3. Plasticizers (0-20%)
-
Mineral oils (naphthenic/paraffinic)
-
Polybutenes
-
Liquid tackifiers
4. Stabilizers & Antioxidants (0.5-3%)
-
Phenolic antioxidants (BHT, Irganox)
-
Phosphite stabilizers
-
UV stabilizers for outdoor applications
5. Fillers & Additives (0-15%)
-
Waxes (adjust viscosity/set time)
-
Pigments (colorants)
-
Rheology modifiers
4. TGM Factory Profile:
TGM Chemical Machine Co., Ltd is a group enterprise. We have brands like TGM, Pengchang and Tongpeng.
We are a leader in the field of chemical machine industry, with 18 years of industry experience.
We have professional R&D design team, strong technical support, skilled production team, reliable after sales service, flexible customized solutions,
to meet your various standards and non standard equipment procurement needs. We committed to providing the complete and professional chemical equipment solutions.
We integrate, design, development, production, sales and training together.
Our products scope: Disperser, Bead Mill, Basket Mill, Mixer, emulsifier, Mixing kettles, Reactor, Filling machine, Bag filter, Pumps, Zirconium Bead, 3 roll mill, and other accessories.
Our machines help you to make ideal products: paints, coatings, inks, pigments, dyes, thinner, hardener, emulsions, varnish, spin finish, putty, glues, adhesives, viscous pastes, concrete Admixtures,
PCVC solvent cement, liquid resins, sealants, silicone sealant, lithium battery, electronic slurry&paste, pulps, silicon dioxide, liquid rubber, pesticide, liquid fertilizer, disinfectant, liquid detergent, gel,
lotions, shampoo, body wash, liquid soap, hand sanitizer, liquid wash, nail polish, creams, and so on.
We could offer individual machine or full production lines for your plants.
5. What are advantages of your factory?
1) Our factory is a leader manufacture of Chemical machine With 18 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
6. Who are your factory's clients? Could you list some of them?
AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT,
PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES...
7. What certificate your factory could offer?:
CE, BSC, CNEX, ISO, patents.
8. Manufacture Processing:
Our Chemical Machines are strictly quality control at every single production step, after quality past, we will move to do next step production.
Our Chemical Machines production process: raw materials preparing-cutting/bending materials-welding-polishing-assembling-coating-testing-packing-loading.
9. Packing And Shipping:
10. FAQ:
Question: Are you a factory or a trading company? where is your factory?
Answer: We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province, China.
Question: Which countries your machine sold to?
Answer: American Market: America, Canada, Mexico, Brazil;
European Market: UK, Germany, Netherlands, Bulgaria, Italy, Russia;
African Market: South Africa, Algeria, Zambia, Cameroon, Ethiopia, Uganda, Madagascar;
Asian Market: Malaysia, Indonesia, Singapore, Vietnam, Thailand, Kazakhstan, Bangladesh, Pakistan, Lebanon, Iran, Iraq, Egypt, Qatar, Turkey, Saudi Arabia, UAE;
Question: How long is your machine warranty?
Answer: 12 months free for whole machine, After a year, spare parts charges, but life-long free for consultant.
Question: How long is your lead time?
Answer: Depends on the machines you choose. Generally from 7 days to 35days. Some big machine: 45-60days.
Question: How could I know how to operate the machines?
Answer: We provide teaching video and operating manual, and 24 hours in 7 days video guidance.
Question:How long is your machine warranty?
Answer: 12 months free for whole machine, After a year, spare parts charges, but life-long free for consultant.
