Acylic Adhesive Label Glue Production Line With Formula
-
USD 150,000.00 ~ USD 300,000.00/set
1/ set (Min. Order)

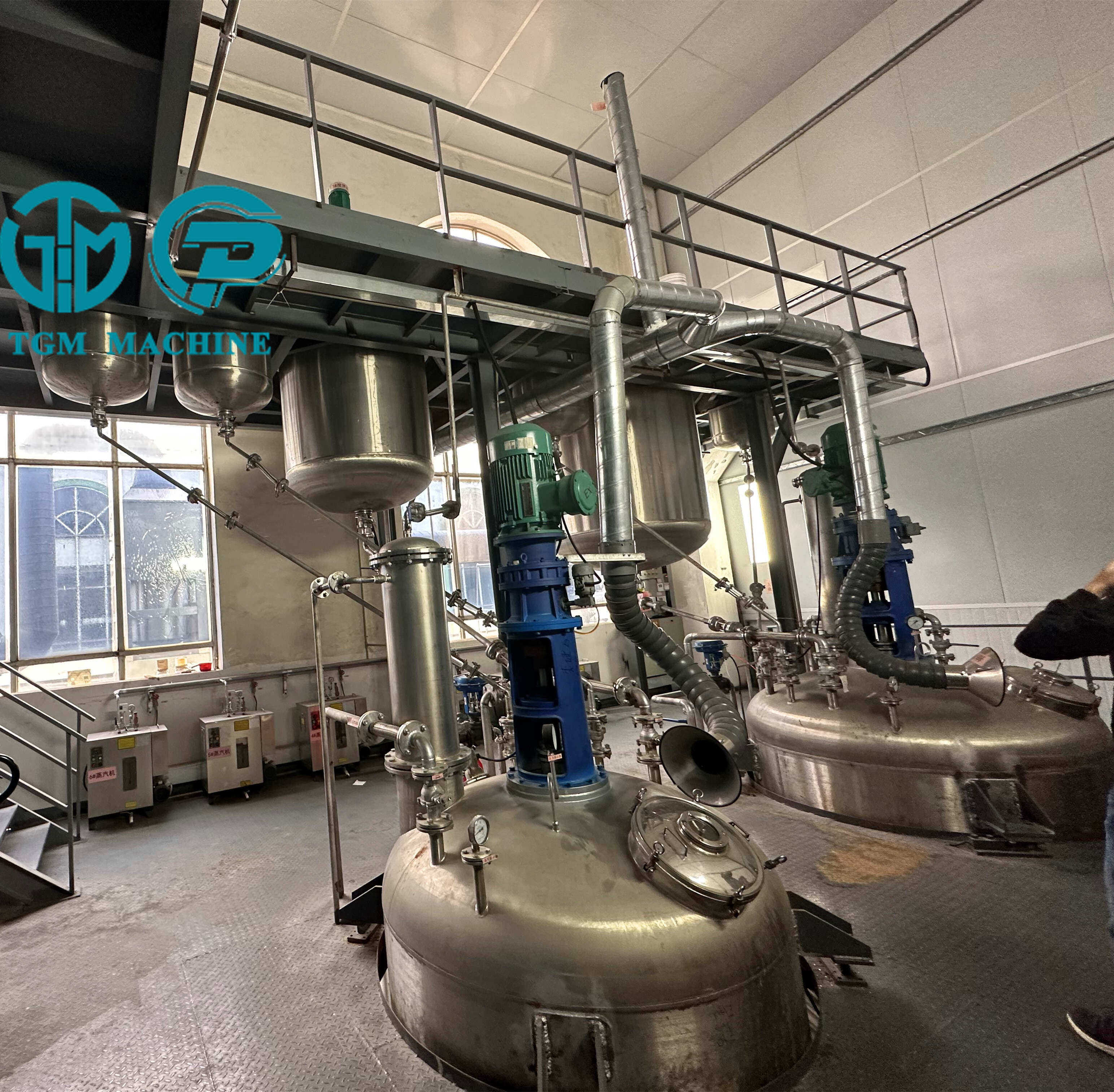

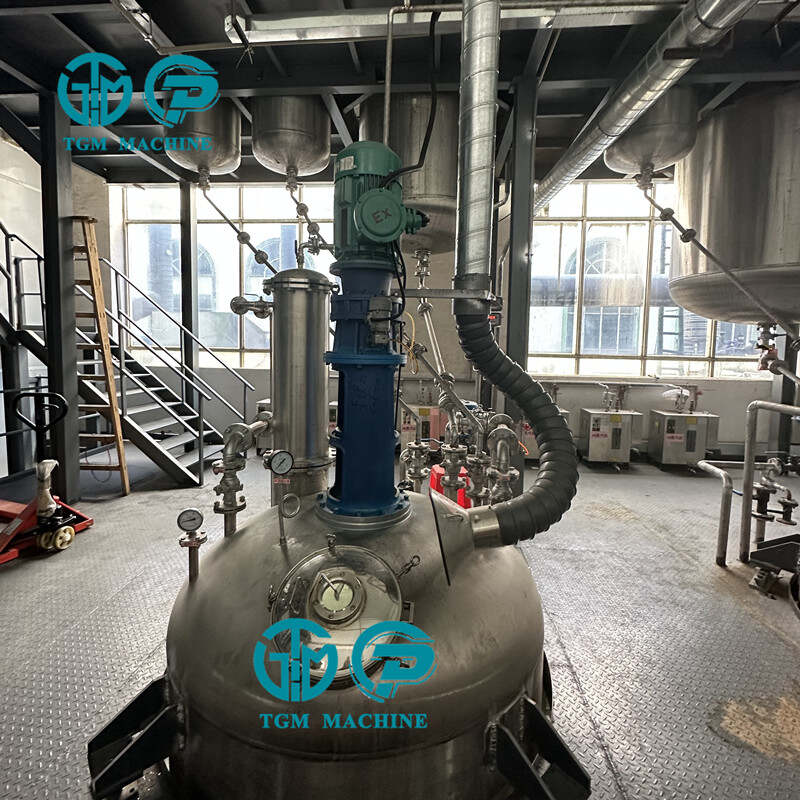

Automatic Acrylic Label Adhesive/Glue Production Line with customized capacity and With Formula
1.production line introduction

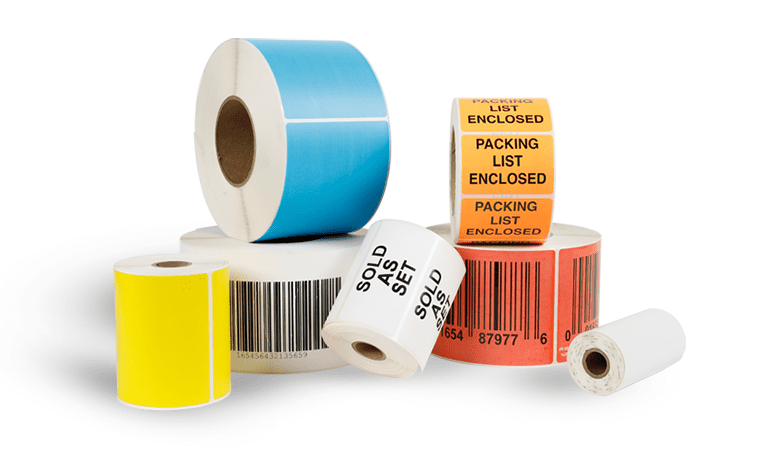

Making a water-based acrylic adhesive for kinds of labels involves formulating a pressure-sensitive adhesive (PSA) that adheres well to BOPP film or Thermal Paper.
How to make Acylic water based adheisve/ glue for labels:
A.Materials Needed:
-
Acrylic Emulsion (e.g., a self-crosslinking acrylic copolymer like Acronal® NX 4610 or Duro-Tak® 87-2516) – 100 parts
-
Tackifier Resin Dispersion (e.g., Escorez® 5637 or Sylvatac® RE 100) – 10-30 parts (improves adhesion)
-
Plasticizer (e.g., Dipropylene Glycol Dibenzoate or Polyethylene Glycol 400) – 0-5 parts (optional, for flexibility)
-
Wetting Agent (e.g., Triton™ X-100 or Dynol™ 604) – 0.1-0.5 parts (helps coating)
-
Thickener (e.g., Acrysol™ RM-8W or Bentonite clay) – as needed (adjusts viscosity)
-
Defoamer (e.g., BYK-024 or Foamaster® 111) – 0.1-0.3 parts (prevents bubbles)
-
Ammonia Solution (25%) – to adjust pH (~8-9)
-
Deionized Water – for dilution (if needed)
B: Procedure:
-
Prepare the Acrylic Emulsion Base:
-
Pour 100 parts acrylic emulsion into a mixing container.
-
-
Add Tackifier Dispersion:
-
Slowly add 10-30 parts tackifier resin dispersion while stirring (0-80 RPM).
-
-
Adjust Adhesive Properties:
-
Add plasticizer (if needed) for flexibility.
-
Add 0.1-0.5 parts wetting agent to improve coating.
-
Add defoamer (0.1-0.3 parts) to prevent foam formation.
4. Adjust pH & Viscosity:
-
Check pH (should be 8-9). If too low, add ammonia solution.
-
If too thick, dilute with deionized water.
-
If too thin, add thickener (e.g., 0.2-1% Acrysol™ RM-8W).
5. Mixing & Degassing:
-
Stir for 30-60 mins to ensure homogeneity.
-
Let it sit for 1-2 hours to release trapped air.
-
-
-
- Acylic Labels Adhesive/Glue application:
Coating on BOPP Film or thermal paper:
-
Apply the adhesive using a Meyer rod, knife coater, or roll coater (wet coating thickness ~20-50 µm).
-
Dry in an oven at 80-100°C for 2-5 mins to remove water
-
Testing & Optimization:
-
Check peel adhesion (180° peel test on PP surface).
-
Adjust tackifier or plasticizer levels if needed.
-
-
4. TGM Factory Profile:
TGM Chemical Machine Co., Ltd is a group enterprise. We have brands like TGM, Pengchang and Tongpeng.
We are a leader in the field of chemical machine industry, with 18 years of industry experience.
We have professional R&D design team, strong technical support, skilled production team, reliable after sales service, flexible customized solutions,
to meet your various standards and non standard equipment procurement needs. We committed to providing the complete and professional chemical equipment solutions.
We integrate, design, development, production, sales and training together.
Our products scope: Disperser, Bead Mill, Basket Mill, Mixer, emulsifier, Mixing kettles, Reactor, Filling machine, Bag filter, Pumps, Zirconium Bead, 3 roll mill, and other accessories.
Our machines help you to make ideal products: paints, coatings, inks, pigments, dyes, thinner, hardener, emulsions, varnish, spin finish, putty, glues, adhesives, viscous pastes, concrete Admixtures,
PCVC solvent cement, liquid resins, sealants, silicone sealant, lithium battery, electronic slurry&paste, pulps, silicon dioxide, liquid rubber, pesticide, liquid fertilizer, disinfectant, liquid detergent, gel,
lotions, shampoo, body wash, liquid soap, hand sanitizer, liquid wash, nail polish, creams, and so on.
We could offer individual machine or full production lines for your plants.
5. What are advantages of your factory?
1) Our factory is a leader manufacture of Chemical machine With 18 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
6. Who are your factory's clients? Could you list some of them?
AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT,
PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES...
7. What certificate your factory could offer?:
CE, BSC, CNEX, ISO, patents.
8. Manufacture Processing:
Our Chemical Machines are strictly quality control at every single production step, after quality past, we will move to do next step production.
Our Chemical Machines production process: raw materials preparing-cutting/bending materials-welding-polishing-assembling-coating-testing-packing-loading.
9. Packing And Shipping:
10. FAQ:
Question: Are you a factory or a trading company? where is your factory?
Answer: We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province, China.
Question: Which countries your machine sold to?
Answer: American Market: America, Canada, Mexico, Brazil;
European Market: UK, Germany, Netherlands, Bulgaria, Italy, Russia;
African Market: South Africa, Algeria, Zambia, Cameroon, Ethiopia, Uganda, Madagascar;
Asian Market: Malaysia, Indonesia, Singapore, Vietnam, Thailand, Kazakhstan, Bangladesh, Pakistan, Lebanon, Iran, Iraq, Egypt, Qatar, Turkey, Saudi Arabia, UAE;
Question: How long is your machine warranty?
Answer: 12 months free for whole machine, After a year, spare parts charges, but life-long free for consultant.
Question: How long is your lead time?
Answer: Depends on the machines you choose. Generally from 7 days to 35days. Some big machine: 45-60days.
Question: How could I know how to operate the machines?
Answer: We provide teaching video and operating manual, and 24 hours in 7 days video guidance.
Question:How long is your machine warranty?
Answer: 12 months free for whole machine, After a year, spare parts charges, but life-long free for consultant.
