Epoxy Resin Production Line: Process, Equipment, and Key Considerations
Introduction
Epoxy resin is a versatile thermosetting polymer widely used in coatings, adhesives, composites, and electronics due to its excellent mechanical strength, chemical resistance, and adhesion properties. Producing high-quality epoxy resin requires a well-designed epoxy resin production line with precise control over raw material mixing, reaction, and finishing processes.
This blog provides an in-depth look at:
✔ Key steps in epoxy resin production
✔ Essential equipment in the production line
✔ Automation and quality control measures
✔ Industry trends and innovations
1. Epoxy Resin Production Process Overview
The manufacturing of epoxy resin typically involves three main stages:
(1) Raw Material Preparation
-
Epichlorohydrin (ECH) and Bisphenol-A (BPA) are the primary raw materials.
-
Other additives (solvents, catalysts, modifiers) are pre-mixed for consistency.
(2) Polymerization (Reaction Stage)
-
Step 1: Epoxy Prepolymer Synthesis
-
ECH and BPA undergo a condensation reaction in a reactor under controlled temperature (50–90°C).
-
A catalyst (e.g., NaOH) is added to accelerate the reaction.
-
-
Step 2: Washing & Purification
-
The crude epoxy resin is washed to remove byproducts (e.g., NaCl).
-
Solvents may be used for dilution and purification.
-
(3) Finishing & Packaging
-
Devolatilization (removing residual solvents and moisture).
-
Blending with modifiers (flexibilizers, flame retardants).
-
Filtration & Packaging into drums or bulk containers.
2. Key Equipment in an Epoxy Resin Production Line
A fully automated epoxy resin plant includes:
| Equipment | Function |
|---|---|

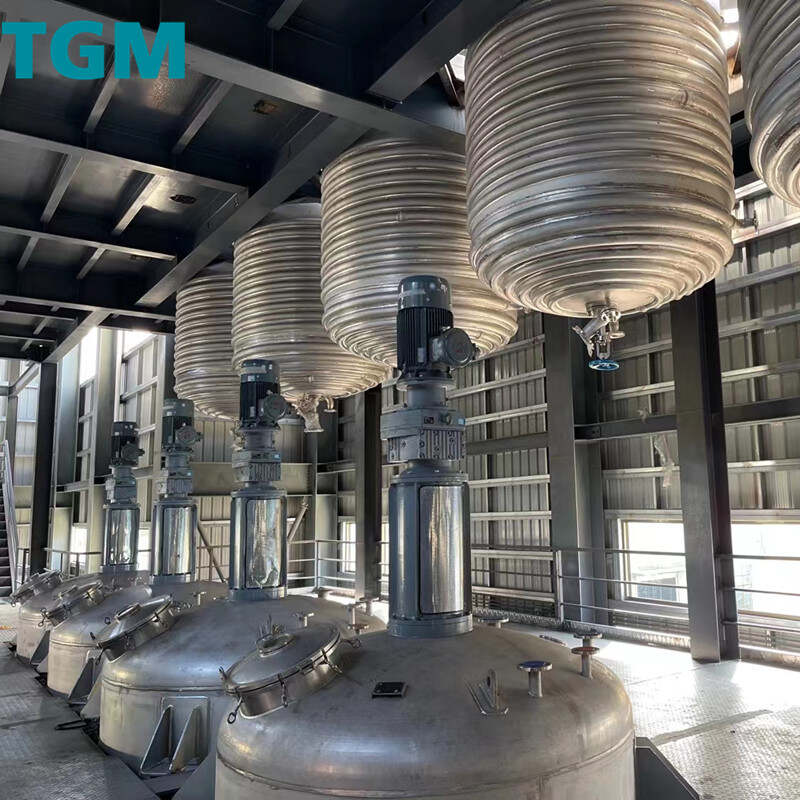

| 1. Reactor (Stainless Steel/Jacketed) | Core vessel for epoxy synthesis (temperature/pressure-controlled). |
| 2. Condenser | Cools vapors and recycles unreacted ECH. |
| 3. Centrifuge/Separator | Removes salt (NaCl) and impurities. |
| 4. Thin-Film Evaporator | Devolatilizes solvents under vacuum. |
| 5. Mixing & Blending Tanks | Homogenizes resin with additives. |
| 6. Filtration System | Removes particulates (final purity control). |
| 7. Automated Packaging Line | Fills epoxy into drums, IBCs, or small containers. |
3. Automation & Quality Control
Modern epoxy resin plants use:
-
PLC/DCS Control Systems – For precise reaction monitoring (temperature, pH, viscosity).
-
Online Spectroscopy (FTIR/NIR) – Real-time analysis of epoxy equivalent weight (EEW).
-
Automated Dosing Systems – Ensures accurate raw material ratios.
Critical Quality Parameters:
✔ Epoxy Equivalent Weight (EEW)
✔ Viscosity
✔ Hydrolyzable Chloride Content
✔ Color (Gardner Scale)
4. Industry Trends & Innovations
-
Bio-Based Epoxy Resins (from plant-derived ECH/BPA alternatives).
-
Low-VOC Formulations (for eco-friendly coatings).
-
Continuous Production (replacing batch reactors for higher efficiency).
Conclusion
An optimized epoxy resin production line combines advanced reactors, purification systems, and automation to ensure high yield and consistent quality. Manufacturers must balance reaction efficiency, safety, and environmental compliance to meet growing demand in aerospace, electronics, and construction industries.
